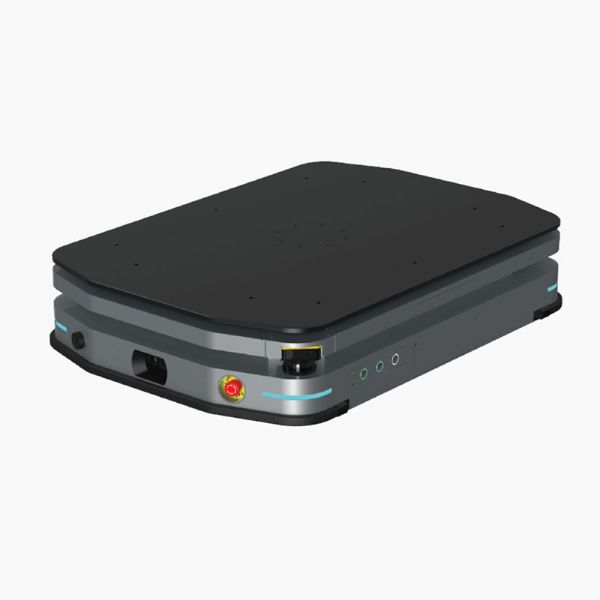

Laser SLAM Safety-Focused Jack Robot JCAMB-1000JS

Safety Lifting · Heavy-Duty Load

• Rated Load Capacity: 1000 kg
• Comprehensive Runtime: 7 h
• Rotation Diameter: 1460 mm
• LiDAR Configuration: 2 (SICK nanoScan3)
• Positioning Accuracy: ±5 mm, ±1°
• Max. Travel Speed: ≤1.5 m/s
• Dimensions (L × W × H): 1330 × 952 × 290 mm
• Chassis Ground Clearance: 30 mm
• Lifting Platform Dimensions: 1300 × 920 mm
• Max. Lifting Stroke: 60 ± 1 mm
Wholesale Inquiry

PRODUCT DETAILS

[ CE Certified, Safety Guaranteed ]
Certified with CE safety standards (ISO 3691-4:2020) and other relevant certifications.

[ 1-Hour Charging, 7-Hour Full-Load Range ]
Optional 40A fast charging; 1 hour charging provides 7 hours of full-load range.

[ ±5 mm Accuracy, Laser SLAM Navigation ]
Laser SLAM navigation achieves ±5 mm accuracy, eliminating the need for reflectors during deployment.

[ Wide-Area Rack Recognition with ≥7 cm Per Side ]
Supports wide-area rack recognition with a distance of ≥7 cm per side, automatically correcting deviations for precise rack insertion, improving loading success rate.
