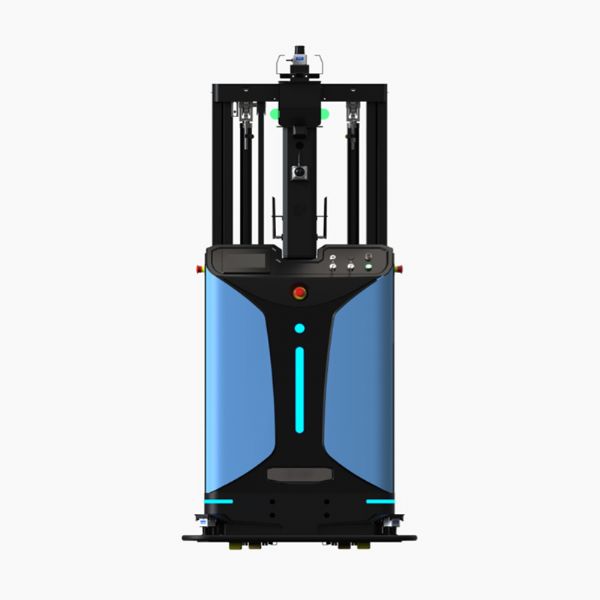

  1. Laser SLAM Intelligent Stacker Forklift JCFL-CDD14
Engineered for Narrow Aisles, Adaptable to Diverse Needs

• Rated Load Capacity: 1,400 kg
• Comprehensive Runtime: 10 h
• Standard Lifting Height: 1,600 / 3,000 mm
• Minimum Turning Radius: 1,227 + 200 mm
• Positioning Accuracy: ±10 mm, ±0.5°
• Travel Speed (Loaded/Unloaded): 1.2 / 1.5 m/s
• Compatible Pallet Type: Three-entry (Chuanzi) pallets
• Operation Modes: Automated navigation, handheld remote control
• Overall Dimensions (L x W x H, excl. fork tips): Furui / Pepperl+Fuchs: 1,710 x 989 x 1,998 mm / 1,710 x 989 x 2,247 mm
• Fork Dimensions (L x W x H, excl. tips): 1,220 x 180 x 70 mm
• Fork Outer Width (Adjustable): 570 / 680 mm
Wholesale Inquiry

PRODUCT DETAILS

[ Ceiling & Non-CE Compatible, Suitable for Both Domestic and International Use ]
This series covers both CE and non-CE body versions, fully meeting various usage scenarios both domestically and internationally.

[ SLAM Navigation, Precise and Convenient ]
±10 mm precision SLAM navigation, no reflector required.

[ 360° Three-Dimensional Protection, Truly Safe ]
Equipped with 3D obstacle avoidance, safety edge, distance sensors, and other sensors for 360° three-dimensional safety protection, significantly enhancing safety.

[ Slim Design, Effortless Maneuvering in Narrow Passages ]
The ultra-small turning radius allows for operation even in narrow passages.
